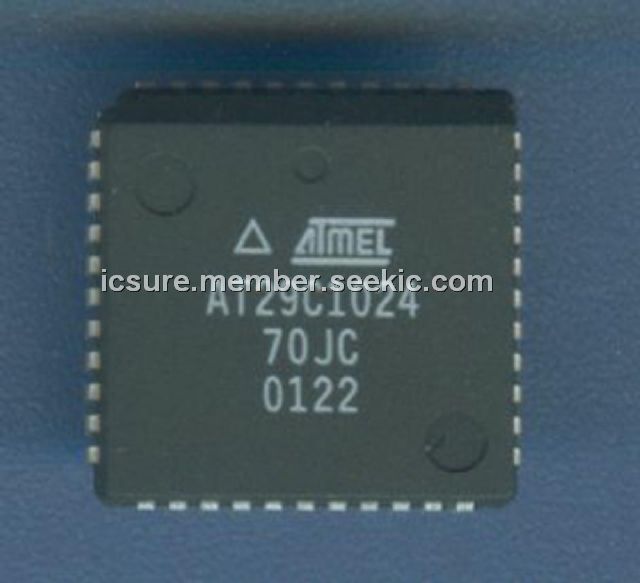

AT29C1024

erasable read only memory, 1Mbit, 120ns, 44PLCC, 4.5 V ~ 5.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~30.00

PartNumber:: AT29C1024

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. hezzle's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-01

From Other Seller

Part Number:AT29C1024
US $1.00 - 30.00
AD595AD

US $7.00 - 9.00 / Piece
(0) Remove
NE536H

US $6.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT29C1024 is a 5-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 1 megabit of memory is organized as 65,536 words by 16 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29C1024 offers access times to 70 ns with power dissipation of just 330 mW. When the device is deselected, the CMOS standby current is less than 200 mA. The AT29C1024 endurance is such that any sector can typically be written to in excess of 10,000 times.

Parametrics

AT29C1024 absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT29C1024 features: (1)Fast Read Access Time - 70 ns; (2)5-Volt Only Reprogramming; (3)Sector Program Operation: Single Cycle Reprogram (Erase and Program), 512 Sectors (128 words/sector), Internal Address and Data Latches for 128 Words; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Fast Sector Program Cycle Time - 10 ms; (7)DATA Polling for End of Program Detection; (8)Low Power Dissipation: 60 mA Active Current, 200 μA CMOS Standby Current; (9)Typical Endurance > 10,000 Cycles.
