Product Summary
The DAC4813AP is a complete quad 12-bit digital-to-analog converter with bus interface logic. Each package includes a precision +10V voltage reference, double-buffered bus interface including a RESET function and 12-bit D/A converters with voltage-output operational amplifiers. The DAC4813AP D/A converter is committed to the ±10V output range only. Gain and offset are not externally adjustable. The DAC4813AP is available with a integral linearity error of 1/2LSB and 12-bit monotonicity guaranteed over temperature.
Parametrics
DAC4813AP absolute maximum ratings: (1)+VCC to ACOM: 0 to +18V; (2)–VCC to ACOM: 0 to –18V; (3)+VCC to –VCC: 0 to +36V; (4)ACOM to DCOM: ±4V; (5)Digital Inputs to DCOM: –1V to +VCC; (6)External Voltage applied to BPO Resistor: ±18V; (7)VREF OUT: Indefinite short to ACOM; (8)VOUT: Momentary to ±18V; (9)Lead Temperature, soldering 10s: +300℃; (10)Max Junction Temperature: 165℃.
Features
DAC4813AP features: (1)complete with reference and output amplifiers; (2)12-bit port interface; (3)analog output range: ±10V; (4)monotonicity guaranteed over temperature; (5)integral linearity error: ±1/2LSB max; (6)±12V to ±15V supplies; (7)28-pin plastic DIP package.

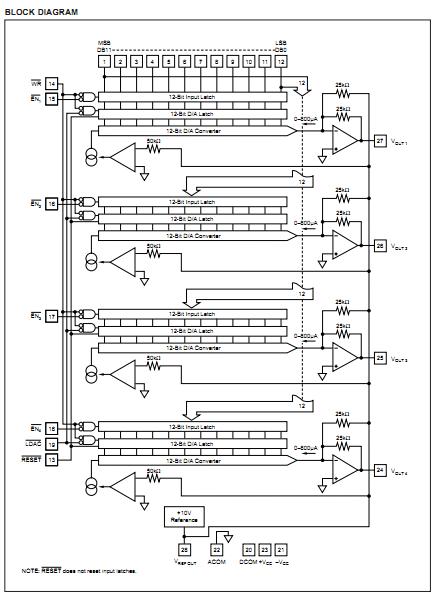

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

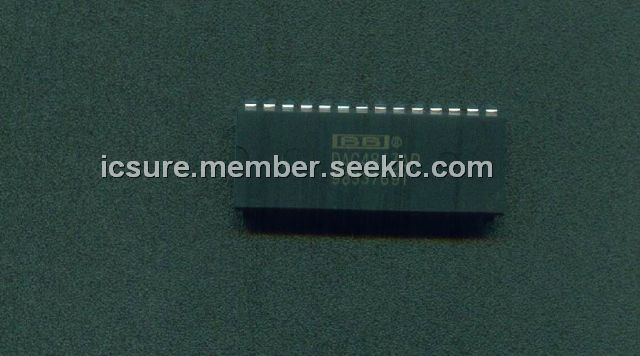

 DAC4813AP |
Texas Instruments |
IC QUAD 12 BIT D/A CONV 28 DIP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
DAC4813 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
DAC4813AP |
Texas Instruments |
IC QUAD 12 BIT D/A CONV 28 DIP |
Data Sheet |
Negotiable |
|
||||
|
DAC4814 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
DAC4814AP |
Texas Instruments |
IC QUAD 12-BIT SERIAL D/A 28-DIP |
Data Sheet |
Negotiable |
|
||||
|
DAC4814BP |
Texas Instruments |
IC QUAD 12-BIT SERIAL D/A 28-DIP |
Data Sheet |
Negotiable |
|
||||
|
DAC4815 |
Other |
|
Data Sheet |
Negotiable |
|
||||
