Product Summary
The ELANSC520-100AI is a Microcontroller.
Parametrics
ELANSC520-100AI absolute maximum ratings: (1)Current - Collector (Ic) (Max): 8A; (2)Voltage - Collector Emitter Breakdown (Max): 600V; (3)Vce Saturation (Max) @ Ib, Ic: 1.6V @ 800mA, 5A; (4)Current - Collector Cutoff (Max): 400μA; (5)DC Current Gain (hFE) (Min) @ Ic, Vce: 60 @ 5A, 5V; (6)Power - Max: 58W.
Features
ELANSC520-100AI features: (1)Synchronous DRAM support; (2)Support for up to 4 banks; (3)Up to 256 Megabytes of SDRAM; (4)ECC (single-bit correction/multiple-bit detection) support.

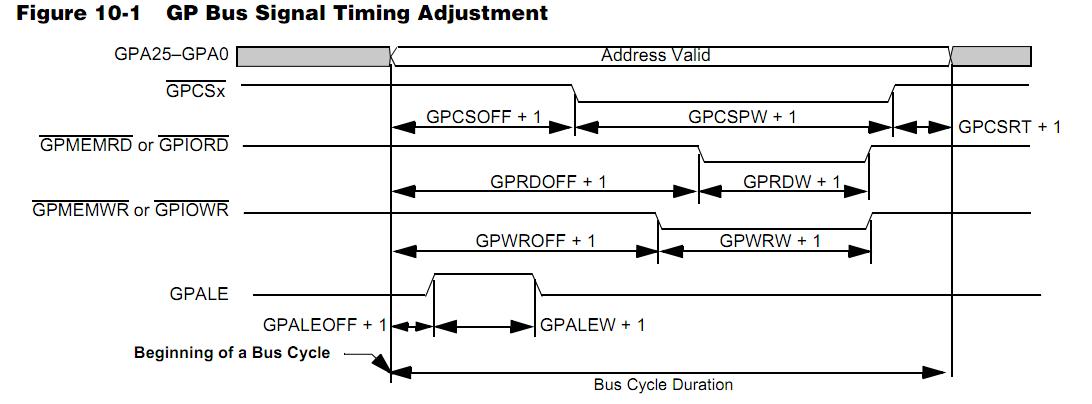

Diagrams
 |
