Product Summary

The OPA620KU is a precision wideband monolithic operational amplifier featuring very fast settling time, low differential gain and phase error, and high output current drive capability. The device is internally compensated for unity-gain stability. The applications of the OPA620KU include low noise preamplifier, low noise differential amplifier, high-resolution video, high-speed signal processing, line driver, ADC/DAC buffer, ultrasound, pulse/RF amplifiers and active filters.

Parametrics

OPA620KU absolute maximum ratings: (1)Supply: ±7VDC; (2)Differential Input Voltage: Total VCC; (3)Storage Temperature Range:–40 to +125℃; (4)Lead Temperature (soldering, 10s): +300℃; (soldering, SO-8, 3s): +260℃; (5)Junction Temperature (TJ): +175℃.

Features

OPA620KU features: (1)low noise: 2.3nV/√Hz; (2)high output current: 100mA; (3)fast settlinG: 25ns (0.01%); (4)gain-bandwidth product: 200MHz; (5)unity-gain stable; (6)low offset voltage: ±200μV; (7)low differential gain/phase error; (8)8-pin DIP, SO-8 packages.

Diagrams

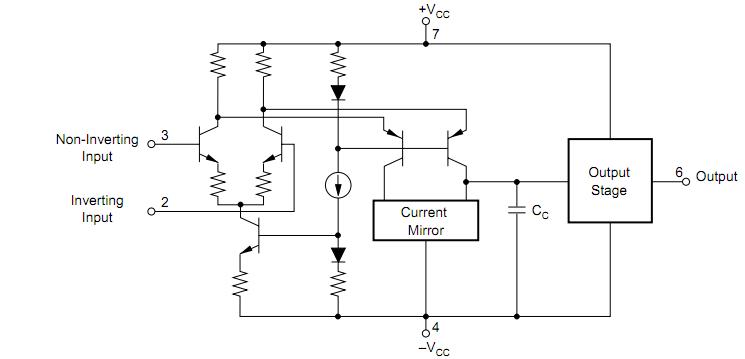

OPA620KU block diagram
