Product Summary

The AD2S83AP is a monolithic 10-, 12-, 14- or 16-bit tracking resolver-to-digital converter. The converter allows users to select their own resolution and dynamic performance with external components. The AD2S83AP allows users to select the resolution to be 10, 12, 14 or 16 bits and to track resolver signals rotating at up to 1040 revs per second (62,400 rpm) when set to 10-bit resolution. The applications of the AD2S83AP include DC and AC Servo Motor Control, Process Control, Numerical Control of Machine Tools, Robotics and Axis Control.

Parametrics

AD2S83AP absolute maximum ratings: (1)+VS: +13 V dc; (2)–VS: –13 V dc; (3)+VL: +VS; (4)Reference: +13 V to –VS; (5)SIN: +13 V to –VS; (6)COS: +13 V to –VS; (7)Any Logical Input: –0.4 V dc to +VL dc; (8)Demodulator Input: +13 V to –VS; (9)Integrator Input: +13 V to –VS; (10)VCO Input: +13 V to –VS; (11)Power Dissipation: 800 mW; (12)Operating Temperature: –40 to +85℃; (13)Storage Temperature: –65 to +150℃; (14)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD2S83AP features: (1)Tracking R/D Converter; (2)High Accuracy Velocity Output; (3)High Max Tracking Rate 1040 RPS (10 Bits); (4)44-Lead PLCC Package; (5)10-, 12-, 14- or 16-Bit Resolution Set by User; (6)Ratiometric Conversion; (7)Stabilized Velocity Reference; (8)Dynamic Performance Set by User; (9)Industrial Temperature Range.

Diagrams

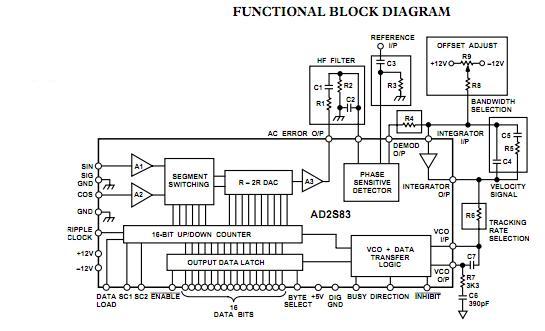

AD2S83AP functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD2S83AP
AD2S83AP
Analog Devices Inc
IC R/D CONV TRACKING 44PLCC
Data Sheet
1-2: $94.00
AD2S83APZ-REEL
AD2S83APZ-REEL

IC CONV R/D MONO VAR RES 44PLCC
Data Sheet
0-500: $71.92
AD2S83APZ
AD2S83APZ

IC R/D CONV TRACKING 44PLCC
Data Sheet
0-1: $82.53
1-10: $77.13
10-100: $71.92
