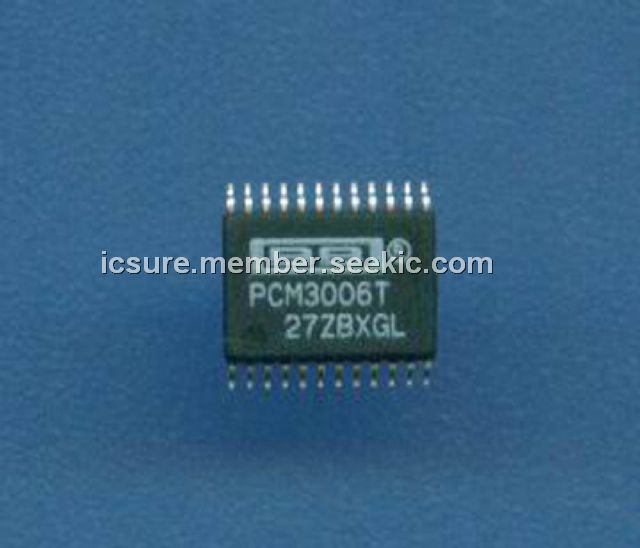

Product Summary
The PCM3006T is a low cost single chip stereo audio CODEC (analog-to-digital and digital-to-analog converter) with single-ended analog voltage input and output. The PCM3006T provides a Power-Down Mode that operates on the ADCs and DACs independently. Fabricated on a highly advanced 0.6μs CMOS process, the PCM3006T is suitable for a wide variety of cost-sensitive consumer applications where good performance is required. Applications include sampling keyboards, digital mixers, effects processors, hard-disk recorders, data recorders and digital video cameras.
Parametrics
PCM3006T absolute maximum ratings: (1)Supply Voltage, +VDD, +VCC1, +VCC2: +6.5V; (2)Supply Voltage Differences: ±0.1V; (3)GND Voltage Differences: ±0.1V; (4)Digital Input Voltage: –0.3 to VDD + 0.3V; (5)Analog Input Voltage: –0.3 to VCC1, VCC2 + 0.3V; (6)Power Dissipation: 300mW; (7)Input Current: ±10mA; (8)Operating Temperature Range: –25 to +85℃; (9)Storage Temperature: –55 to +125℃; (10)Lead Temperature (soldering, 5s): +260℃; (reflow, 10s): +235℃.
Features
PCM3006T features: (1)monolithic 16-bit △Σ ADC and DAC; (2)stereo ADC: Single-Ended Voltage Input; 64X Oversampling; High Performance; Digital High Pass Filter; (3)stereo DAC: Single-Ended Voltage Output; Analog Low Pass Filter; 8× Oversampling Digital Filter; High Performance; (4)Digital De-emphasis; (5)Power Down: ADC/DAC Independent; (6)sampling rate: Up to 48kHz; (7)system clock: 256fS, 384fS, 512fS; (8)single +3V power supply; (9)small package: 24-Lead TSSOP.

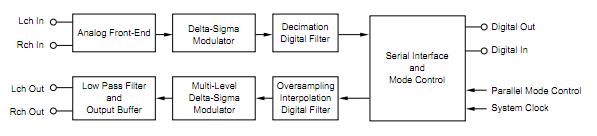

Diagrams
