Product Summary

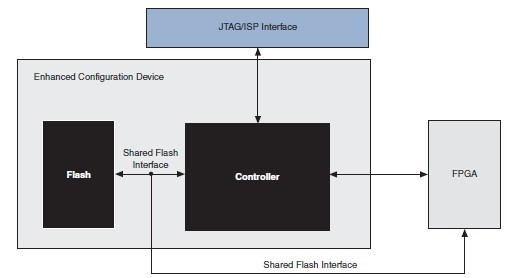

The EPF10K50RC240-4 is a FPGA. It is a high-speed, advanced configuration solution for very high-density FPGAs. The core of the EPF10K50RC240-4 is divided into two major blocks: a configuration controller and a flash memory. The flash memory is used to store configuration data for systems made up of one or more Altera FPGAs. Unused portions of the flash memory can be used to store processor code or data that can be accessed via the external flash interface after FPGA configuration is complete.
Parametrics
EPF10K50RC240-4 absolute maximum ratings: (1)VCCINT, Supply voltage With respect to ground: –0.2 to 3.6 V; (2)VCCIO: –0.5 to 3.6 V; (3)VI, DC input voltage: –0.5 to 3.6 V; (4)IOUT, DC output current, per pin: –25 to 25 mA; (5)TSTG, Storage temperature No bias: –65 to 150℃; (6)TAMB, Ambient temperature Under bias: –65 to 135℃; (7)TJ, Junction temperature: 135℃.
Features
EPF10K50RC240-4 features: (1)Standard flash die and a controller die combined into single stacked chip package; (2)External flash interface supports parallel programming of flash and external processor access to unused portions of memory; (3)Supports byte-wide configuration mode fast passive parallel (FPP); 8-bit data output per DCLK cycle; (4)Supports true n-bit concurrent configuration (n = 1, 2, 4, and 8) of Altera FPGAs; (5)Pin-selectable 2-ms or 100-ms power-on reset (POR) time; (6)Internal pull-up resistor on nINIT_CONF always enabled; (7)User programmable weak internal pull-up resistors on nCS and OE pins; (8)Internal weak pull-up resistors on external flash interface address and control lines, bus hold on data lines; (9)Standby mode with reduced power consumption.
