Product Summary

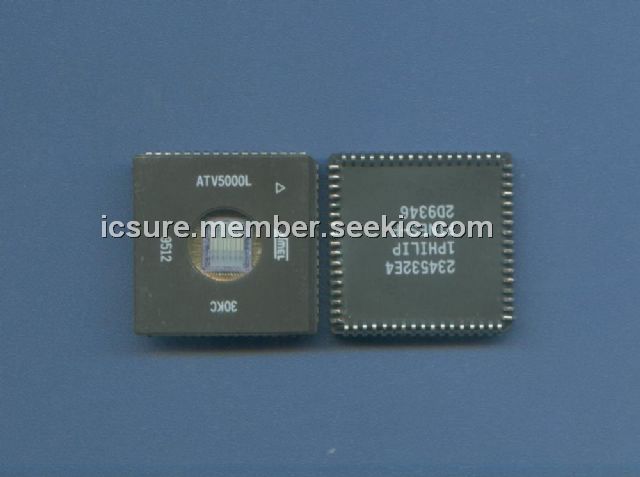

The ATV5000L-30KC is an easy to use, high density programmable logic device. Its simple, regular architecture translates into increased utilization and high performance. The ATV5000L-30KC has one programmable combinatorial logic array.
Parametrics
ATV5000L-30KC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -2.0 V to +7.0 V; (4)Voltage on Input Pins with Respect to Ground During Programming: -2.0 V to +14.0 V; (5)Programming Voltage with Respect to Ground: -2.0 V to +14.0 V; (6)Integrated UV Erase Dose: 7258 W.sec/cm2.
Features
ATV5000L-30KC features: (1)Advanced Programmable Logic Device - High Gate Utilization; (2)Flexible Interconnect Architecture - Universal Routing; (3)Flexible Logic Cells - 128 Flip-Flops and 52 Latches; (4)Multiple Flip-Flop Types - Synchronous or Asynchronous Registers; (5)High Speed - 50 MHz Operation; (6)Complete Third Party Software Support No Placement, Routing or Layout Software Required; (7)Proven and Reliable High Speed CMOS EPROM Process, 2000 V ESD Protection, 200 mA Latchup Immunity; (8)Reprogrammable - Tested 100% for Programmability; (9)Commercial, Industrial and Military Temperature Grades.

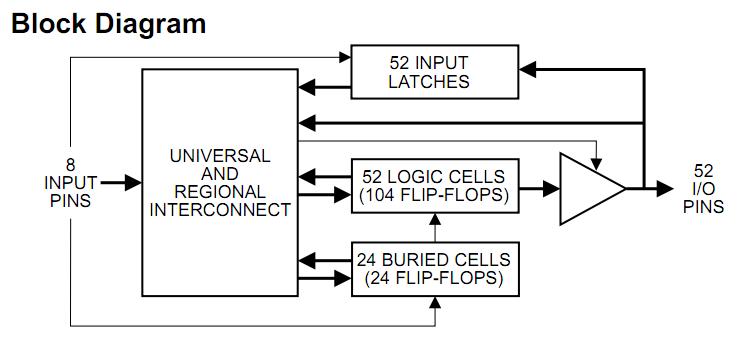

Diagrams
 |
