Product Summary

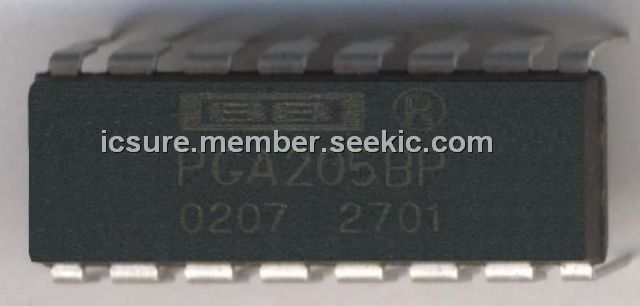

The PGA205BP is a programmable gain instrumentation amplifier. The PGA205BP is low cost, general purpose programmable-gain instrumentation amplifier offering excellent accuracy. The precision and versatility, and low cost of the PGA205BP makes the device ideal for a wide range of applications. Gain is selected by two TTL or CMOS-compatible address lines, A0 and A1. Internal input protection can withstand up to ±40V on the analog inputs without damage.
Parametrics
PGA205BP absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Analog Input Voltage Range: ±40V; (3)Logic Input Voltage Range: ±VS; (4)Output Short-Circuit (to ground): Continuous; (5)Operating Temperature: –40℃ to +125℃; (6)Storage Temperature: –40℃ to +125℃; (7)Junction Temperature: +150℃; (8)Lead Temperature (soldering –10s): +300℃.
Features
PGA205BP features: (1)Low offset voltage: 50mV max; (2)Low offset voltage drift: 0.25mV/℃; (3)Low input bias current: 2nA max; (4)Low quiescent current: 5.2mA typ; (5)No logic supply required; (6)16-pin plastic dip, SOL-16 packages.

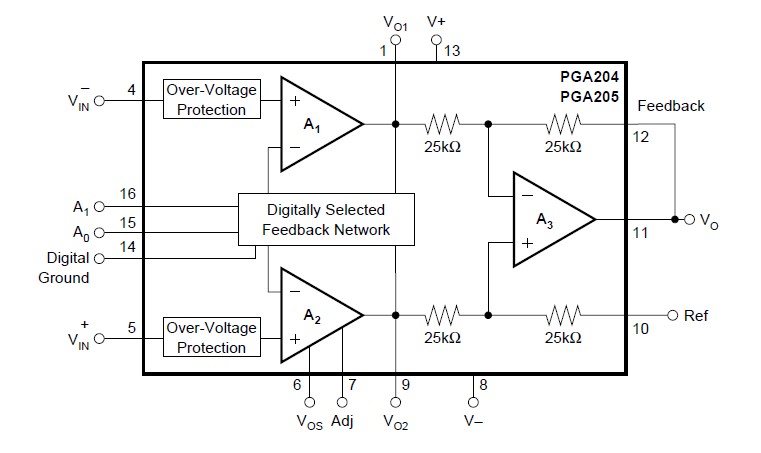

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PGA205BP |
Texas Instruments |
Instrumentation Amplifiers Programmable Gain Instrumentation Amp |
Data Sheet |
|
|
||||||||||||
|
PGA205BPG4 |
Texas Instruments |
Instrumentation Amplifiers Programmable Gain Instrumentation Amp |
Data Sheet |
|
|
||||||||||||
