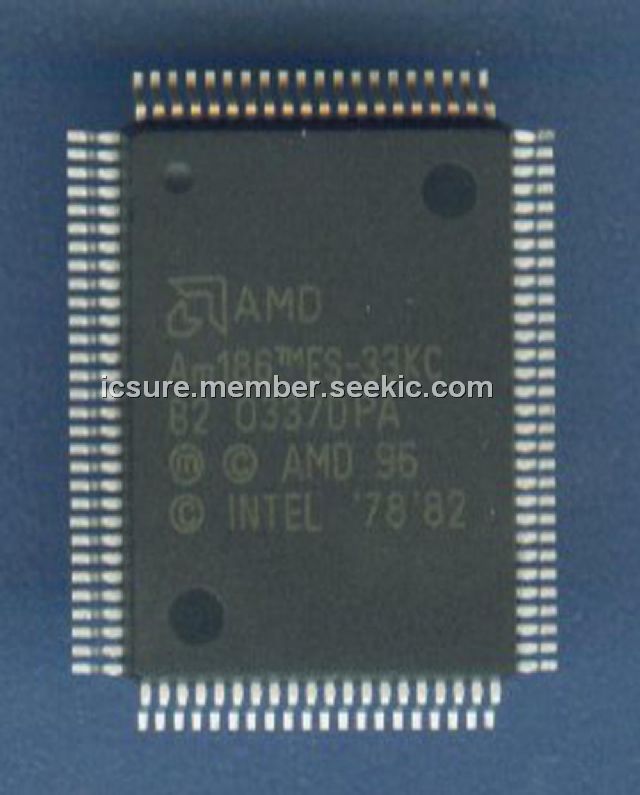

Am186ES-33KC

16-Bit Embedded Microcontroller, QFP100, 64-Kbyte, –0.5V to VCC + 2.6V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~20.00

PartNumber:: Am186ES-33KC

Brand:: Advanced Micro Devices - AMD | Pack: QFP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. hezzle's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-01

From Other Seller

Part Number:Am186ES-33KC
US $1.00 - 20.00
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
TDA7360

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The Am186ES-33KC is a 16-Bit Embedded Microcontroller. The Am186ES-33KC has been designed to meet the most common requirements of embedded products developed for the communications, office automation, mass storage, and general embedded markets. The specific applications of the Am186ES-33KC include feature phones, cellular phones, PBXs, multiplexers, modems, disk drives, hand-held terminals and desktop terminals, fax machines, printers, photocopiers, and industrial controls.

Parametrics

Am186ES-33KC absolute maximum ratings: (1)Temperature under bias: Commercial (TC):0℃ to + 100℃; (2)Storage temperature:–65℃ to + 125℃; (3)Voltage on any pin with respect to ground: –0.5V to VCC + 2.6V.

Features

Am186ES-33KC features: (1)lower system cost with high performance; (2)32Kbytes of internal SRAM; (3)internal SRAM provides same performance as zero-wait-state external memory; (4)supports zero-wait-state operation at 50MHz with 55ns external memory; (5)1-Mbyte memory address space; (6)64-Kbyte I/O space; (7)nonmultiplexed address bus provides glueless interface to external RAM and ROM; (8)phase-locked loop enables processor to operate at up to four times clock input frequency; (9)thirty-two programmable I/O pins; (10)asynchronous serial port allows full-duplex, 7-bit or 8-bit data transfers; (11)DMA to and from asynchronous serial port; (12)synchronous serial interface allows half-duplex, bidirectional data transfer to and from ASICS; (13)reset configuration register; (14)additional external interrupts; (15)hardware watchdog timer can generate NMI or system reset.
