Product Summary

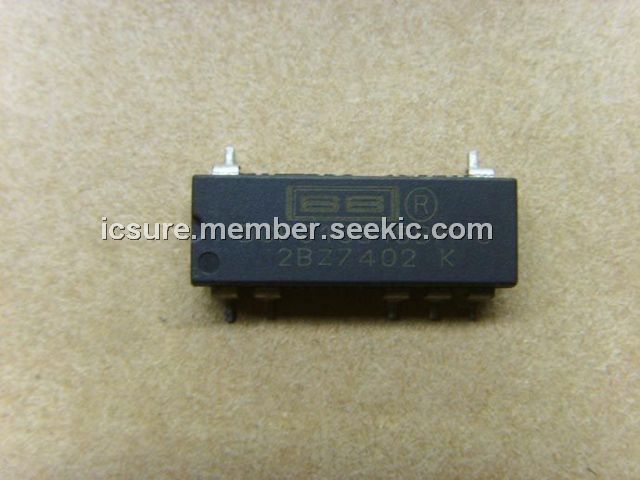

The DCP010515BP-U is a 1W, unregulated, isolated DC/DC converter. Requiring a minimum of external components and including on-chip device protection, the converter provides extra features such as output disable and synchronization of switching frequencies. The applications of the DCP010515BP-U include Point-of-Use Power Conversion, Ground Loop Elimination, Data Acquisition, Industrial Control and Instrumentation and Test Equipment.
Parametrics
DCP010515BP-U absolute maximum ratings: (1)Input voltage, 5V models: 7 V; 15V models: 18 V; 24V models: 29 V; (2)Storage temperature: -40 to +125℃; (3)Lead temperature (soldering, 10s): +270℃.
Features
DCP010515BP-U features: (1)Up To 85% Efficiency; (2)Thermal Protection; (3)Device-to-Device Synchronization; (4)Short-Circuit Protection; (5)EN55022 Class B EMC Performance; (6)UL1950 Recognized Component; (7)JEDEC DIP-14 and SOP-14 Packages.

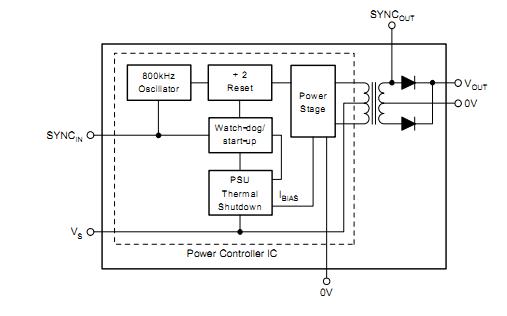

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DCP010515BP-U |
Texas Instruments |
DC/DC Converters Mini 1W Iso Unreg DC/DC Converter |
Data Sheet |
|
|
||||||||||||
|
DCP010515BP-U/700 |
Texas Instruments |
DC/DC Converters Mini 1W Iso Unreg DC/DC Converter |
Data Sheet |
|
|
||||||||||||
