EPM9560ARC208-10

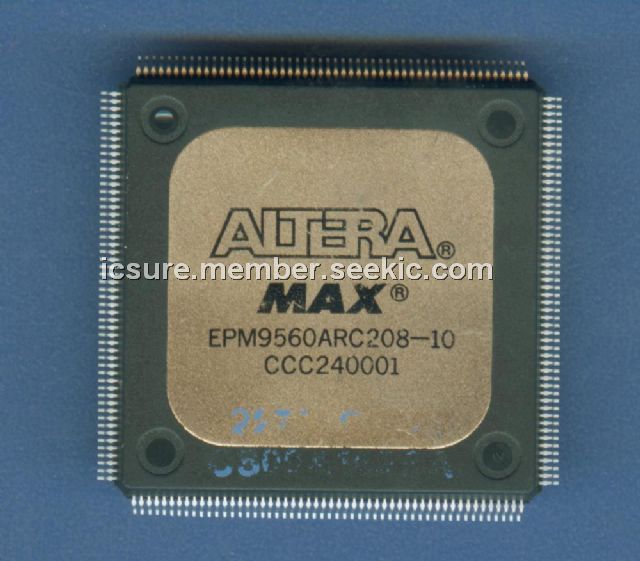

EPLD, 208-RQFP, 7.0V, 25mA, 144 MHz, EPM9560ARC208-10, Altera

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~100.00

PartNumber:: EPM9560ARC208-10

Brand:: Altera Corporation - ALTR | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. hezzle's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-01

From Other Seller

Part Number:EPM9560ARC208-10
US $1.00 - 100.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ALC662

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The EPM9560ARC208-10 is an in-system-programmable, high-density, highperformance EPLD based on Altera third-generation MAX architecture. Fabricated on an advanced CMOS technology, the EEPROM-based EPM9560ARC208-10 provides 6,000 to 12,000 usable gates, pin-to-pin delays as fast as 10 ns, and counter speeds of up to 144 MHz. The -10 speed grade of it is compliant with the PCI Local Bus Specification, Revision 2.2.

Parametrics

EPM9560ARC208-10 absolute maximum ratings: (1)VCC Supply voltage With respect to ground (2): min=-2.0V, max=7.0V; (2)VI DC input voltage With respect to ground (2): min=-2.0V, max7.0V; (3)VCCISP Supply voltage during in-system programming With respect to ground (2): min=-2.0V, max7.0V; (4)IOUT DC output current, per pin: min=-25mA, max=25mA; (5)TSTG Storage temperature No bias: min=-65℃, max=150℃; (6)TAMB Ambient temperature Under bias: min=-65℃, max=135℃; (7)TJ Junction temperature Ceramic packages, under bias: max=150℃; PQFP and RQFP packages, under bias: max=135℃.

Features

EPM9560ARC208-10 features: (1)High-performance CMOS EEPROM-based programmable logic devices (PLDs) built on third-generation Multiple Array MatriX (MAX) architecture; (2)5.0-V in-system programmability (ISP) through built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface; (3)Built-in JTAG boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990; (4)High-density erasable programmable logic device (EPLD) family ranging from 6,000 to 12,000 usable gates (see Table 1); (5)10-ns pin-to-pin logic delays with counter frequencies of up to 144 MHz; (6)Fully compliant with the peripheral component interconnect Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2; (7)Dual-output macrocell for independent use of combinatorial and registered logic.
