Product Summary

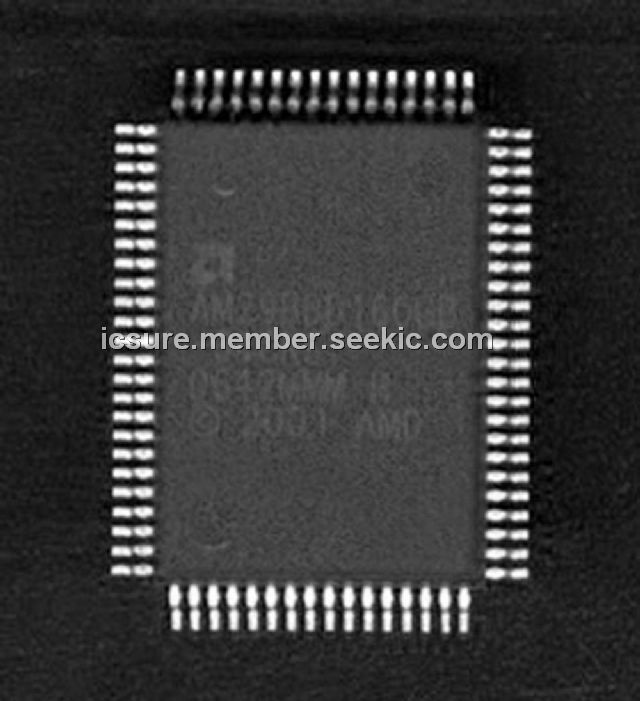

The AM29BDD160GB-64CKE is a 16 Megabit, 2.5 Volt-only single power supply burst mode flash memory device. The device can be configured for either 1,048,576 words in 16-bit mode or 524,288 double words in 32-bit mode. The AM29BDD160GB-64CKE can also be programmed in standard EPROM programmers. The AM29BDD160GB-64CKE offers a configurable burst interface to 16/32-bit microprocessors and microcontrollers.
Parametrics
AM29BDD160GB-64CKE absolute maximum ratings: (1)Storage Temperature: –65 to +150℃; (2)Ambient Temperature with Power Applied: –55 to +125℃; (3)VCC , VIO:–0.5 V to +3.0 V; (4)ACC, A9, OE#, and RESET#: –0.5 V to +13.0 V; (5)Address, Data, Control Signals (with the exception of CLK:–0.5 V to +3.6 V; (6)All other pins:–0.5 V to +5.5 V; (7)Output Short Circuit Current: 200 mA.
Features
AM29BDD160GB-64CKE features: (1)Simultaneous Read/Write operations; (2)User-Defined ×16 or ×32 Data Bus; (3)Dual Boot Block; (4)Flexible sector architecture; (5)Manufactured on 0.17 μm process technology; (6)Programmable Burst interface; (7)Single power supply operation; (8)Compatible with JEDEC standards (JC42.4).

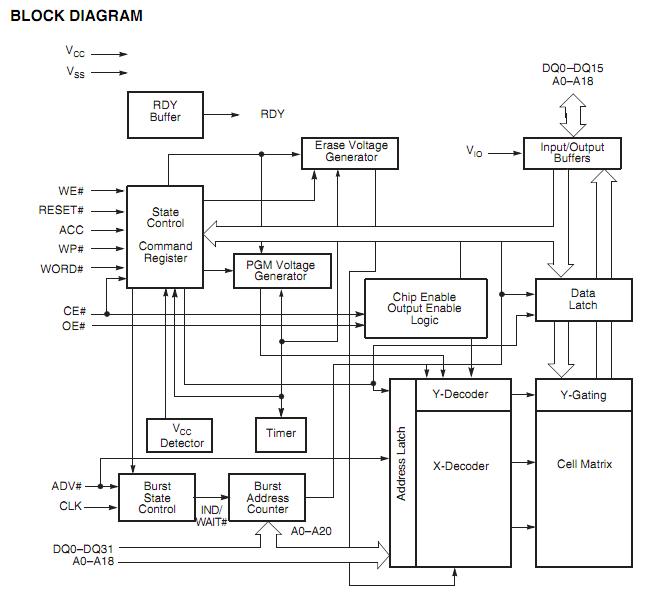

Diagrams
 |
