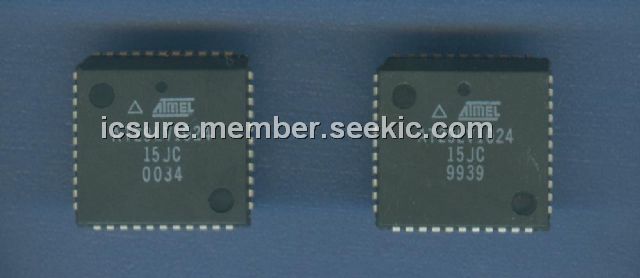

Product Summary

The AT29LV1024-15JC is a 3-volt only in-system Flash programmable and erasable read only memory (PEROM). Its 1 megabit of memory is organized as 65,536 words by 16 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29LV1024-15JC offers access times to 150 ns with power dissipation of just 54 mW. When the device is deselected, the CMOS standby current is less than 50 μA.

Parametrics

AT29LV1024-15JC absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on A9 (including NC Pins) with Respect to Ground: -0.6V to +13.5V.

Features

AT29LV1024-15JC features: (1)Single Voltage Range, 3V to 3.6V Supply; (2)3-volt Only Read and Write Operation; (3)Software Protected Programming; (4)Fast Read Access Time - 150 ns; (5)Low Power Dissipation: 15 mA Active Current; 50 μA CMOS Standby Current; (6)Sector Program Operation: Single-cycle Reprogram (Erase and Program); 512 Sectors (128 words/sector); Internal Address and Data Latches for 128 Words; (7)Fast Sector Program Cycle Time - 20 ms; (8)Internal Program Control and Timer; (9)DATA Polling for End of Program Detection ; (10)Typical Endurance > 10,000 Cycles; (11)CMOS and TTL Compatible Inputs and Outputs; (12)Commercial and Industrial Temperature Ranges.

Diagrams

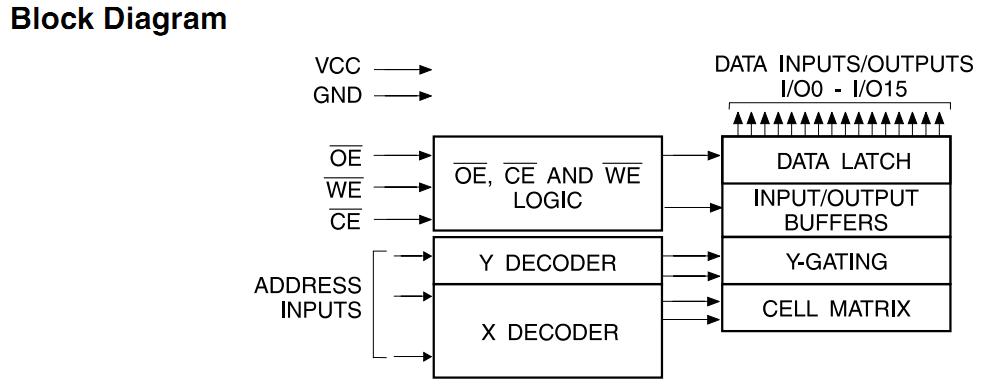

AT29LV1024-15JC block diagram
